Pump Installation Adelaide for Bore, Sump and Pressure Pump Systems

Pump installation in Adelaide involves selecting, sizing, connecting and commissioning new pump systems for residential, commercial and industrial properties. Mayfair Plumbing installs bore pumps, sump pumps, pressure pumps, submersible pumps and commercial pump stations across greater Adelaide. Every installation includes licensed plumbing and electrical work, correct sizing and a written commissioning report.

Pump installation is the process of selecting, sizing, connecting and commissioning a new pump system for a residential, commercial or industrial property. A correct pump installation requires 4 elements: the right pump type and capacity for the application, properly sized pipework, compliant electrical connection, and post-installation commissioning to verify performance.

Mayfair Plumbing has installed pump systems across greater Adelaide since 2004. We install bore pumps, sump pumps, submersible pumps, sewer pumps, pressure pumps, stormwater pumps and commercial pump stations. All installations include electrical connection by a licensed electrician - Mayfair holds both plumbing and Class A electrical licences for pump work, meaning one callout covers both disciplines.

The 3 most common pump installations in Adelaide are bore pump systems for irrigation and garden supply, sump pump systems for basement and carpark drainage, and pressure pump systems for boosting low mains water pressure. Each installation type has different sizing requirements, pipework configurations and electrical specifications covered in detail below.

How Pump Installation Works - from Assessment to Commissioning

Every pump installation at Mayfair Plumbing follows a 5-step process.

Step 1 - Site assessment. A licensed pump technician inspects the site to determine the application, required flow rate, total head pressure (vertical lift plus friction losses), power supply availability and discharge point location. For bore pump installations, this includes confirming bore depth, casing diameter, static water level and expected draw-down rate.

Step 2 - Pump selection and sizing. The technician calculates the correct pump capacity based on the site assessment. An undersized pump will fail to deliver adequate flow or pressure. An oversized pump wastes energy, creates excessive noise and causes short cycling that reduces the pump's lifespan. We select from Davey, Grundfos, Onga, Bianco, Franklin Electric and Honda based on the application and budget.

Step 3 - Pipework and fittings. Suction lines, discharge lines, non-return valves, isolation valves and pressure vessels are installed to manufacturer specifications. Pipe material and diameter are matched to the pump's rated flow. For bore pump installations, this includes the rising main inside the bore casing and the surface pipework to the irrigation or supply system.

Step 4 - Electrical connection. The pump is connected to a dedicated electrical circuit by a licensed electrician. This includes installing the correct circuit breaker or safety switch, running cabling to the pump location, and connecting the pump controller or pressure switch. Submersible bore pumps require specialised submersible cable rated for continuous submersion.

Step 5 - Commissioning and handover. The installed pump is tested across its full operating range. Flow rate, pressure output, cut-in and cut-out pressures, and float switch activation levels (for sump and sewer pumps) are all verified. A written commissioning report is provided documenting the pump model, serial number, settings and test results.

Bore Pump Installation in Adelaide

Bore pump installation is the process of fitting a pump system to an existing or newly drilled bore to extract groundwater for irrigation, garden watering, stock supply or domestic non-potable use. In Adelaide, bore pump installations are most common in McLaren Vale, the Adelaide Hills, the Barossa Valley and coastal suburbs from Glenelg through to Largs Bay.

2 Types of Bore Pump Installation

There are 2 bore pump configurations, and the correct choice depends on bore depth and required flow rate.

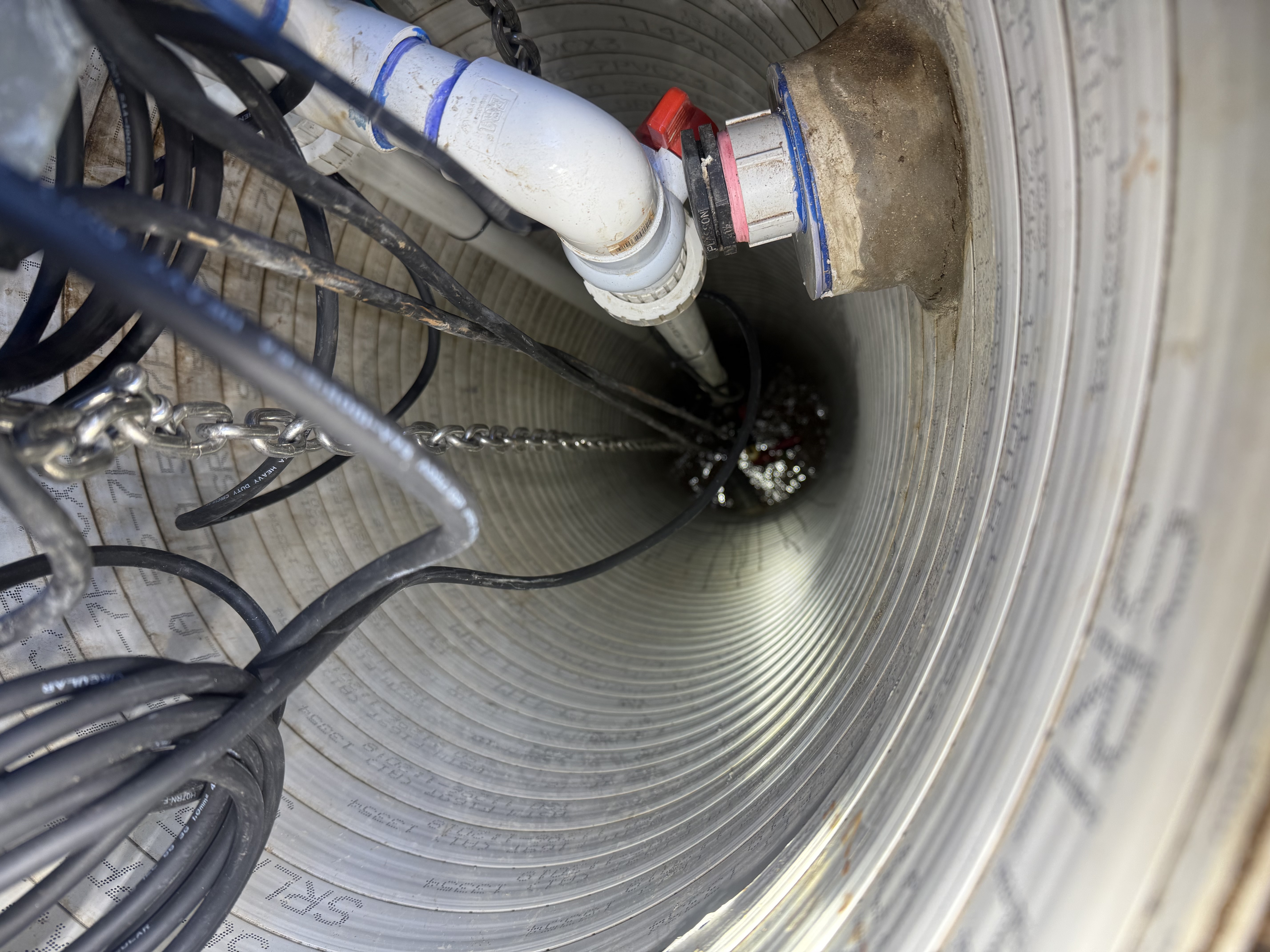

Submersible bore pump installation places the pump unit inside the bore casing, submerged below the water table. The pump, motor and submersible cable are lowered into the bore as a single assembly. A rising main (typically HDPE poly pipe) carries the water from the pump to the surface. Submersible installations are used for bores deeper than 8 metres and are the most common bore pump type installed across the Adelaide Hills and Barossa.

Surface-mounted jet pump installation positions the pump above ground at the bore head. The pump draws water up through a suction line using a venturi jet assembly installed inside the bore. Davey Deep Well jet pumps can extract water from depths up to 50 metres while remaining accessible above ground for easy maintenance. Jet pump installations are common in coastal Adelaide suburbs where bore depths are typically 6–15 metres.

Bore Pump Installation Diagram

A standard submersible bore pump installation consists of 7 components:

1. Submersible pump and motor - installed inside the bore casing below the static water level
2. Rising main - HDPE poly pipe connecting the pump to the surface pipework
3. Submersible cable - waterproof electrical cable running from the pump motor to the surface control box
4. Bore head seal - a weatherproof cap sealing the top of the bore casing, with penetrations for the rising main and cable
5. Pressure tank (accumulator) - a vessel that stores pressurised water and reduces pump cycling
6. Pressure switch or controller - activates the pump when pressure drops below the set point and deactivates when pressure is restored
7. Isolation and non-return valves - prevent backflow and allow the pump to be isolated for servicing

Bore Pump Installation Cost in Adelaide

Bore pump installation costs in Adelaide depend on 3 factors: bore depth, pump type and pipework complexity.

All bore pump installations by Mayfair Plumbing include a fixed-price written quote before work begins. Costs include pump supply, all pipework and fittings, electrical connection and commissioning.

→ Bore pump repairs, installation and replacement in Adelaide

Sump Pump Installation in Adelaide

Sump pump installation protects below-grade areas from flooding by collecting and removing water that accumulates in basements, underground carparks, lift pits and stormwater retention pits. The pump is installed inside a sump pit at the lowest point of the area, activates automatically via a float switch when water rises, and discharges the water to the stormwater system or an approved drainage point.

Where Sump Pumps are Installed in Adelaide

In Adelaide, sump pump installations are essential in 3 property types:

1. Residential basements and subfloor areas in suburbs with sloping terrain - Stirling, Crafers, Blackwood, Belair, Bridgewater and Aldgate in the Adelaide Hills experience heavy winter rainfall and groundwater seepage that requires active pumping.
2. Underground carparks in commercial buildings across the CBD, North Adelaide, Norwood and Unley where stormwater ingress and fire system drainage must be managed.
3. Low-lying residential properties in Prospect, Woodville, West Lakes and Torrensville where the site level sits below the stormwater drainage invert, making gravity drainage impossible.

Sump Pump Installation Components

A residential sump pump installation consists of 5 components:

1. Sump pit - a purpose-built collection pit (typically 300–450mm diameter) installed at the lowest point of the area being protected
2. Submersible sump pump - sits inside the pit and activates when the water level rises
3. Float switch - detects the water level and triggers the pump to start and stop
4. Discharge line - transfers pumped water from the pit to the stormwater drainage system or soakaway
5. Non-return valve - prevents discharged water from flowing back into the pit when the pump stops

For commercial installations and properties with high water volumes, we install dual-pump sump systems with alternating controllers and high-level alarms. The dual configuration ensures one pump is always available as backup if the primary pump fails during a storm event.

Submersible Sump Pump Installation

All sump pump installations by Mayfair Plumbing use submersible pumps - the pump sits fully submerged inside the sump pit. Submersible sump pumps are sealed units designed for continuous contact with water, quieter than pedestal-style pumps, and require less vertical space above the pit.

Common submersible sump pump brands we install include Bianco, Davey, Reefe and Grundfos. Pump sizing depends on the pit volume, expected inflow rate and required discharge head.

→ Sump pump repairs and installation in Adelaide

Pressure Pump Installation in Adelaide

Pressure pump installation increases mains water pressure in properties where the municipal supply is insufficient for comfortable use. In Adelaide, low water pressure is common in elevated suburbs including Glen Osmond, Beaumont, Burnside, Belair and across the Adelaide Hills, and in older homes with undersized galvanised supply pipes.

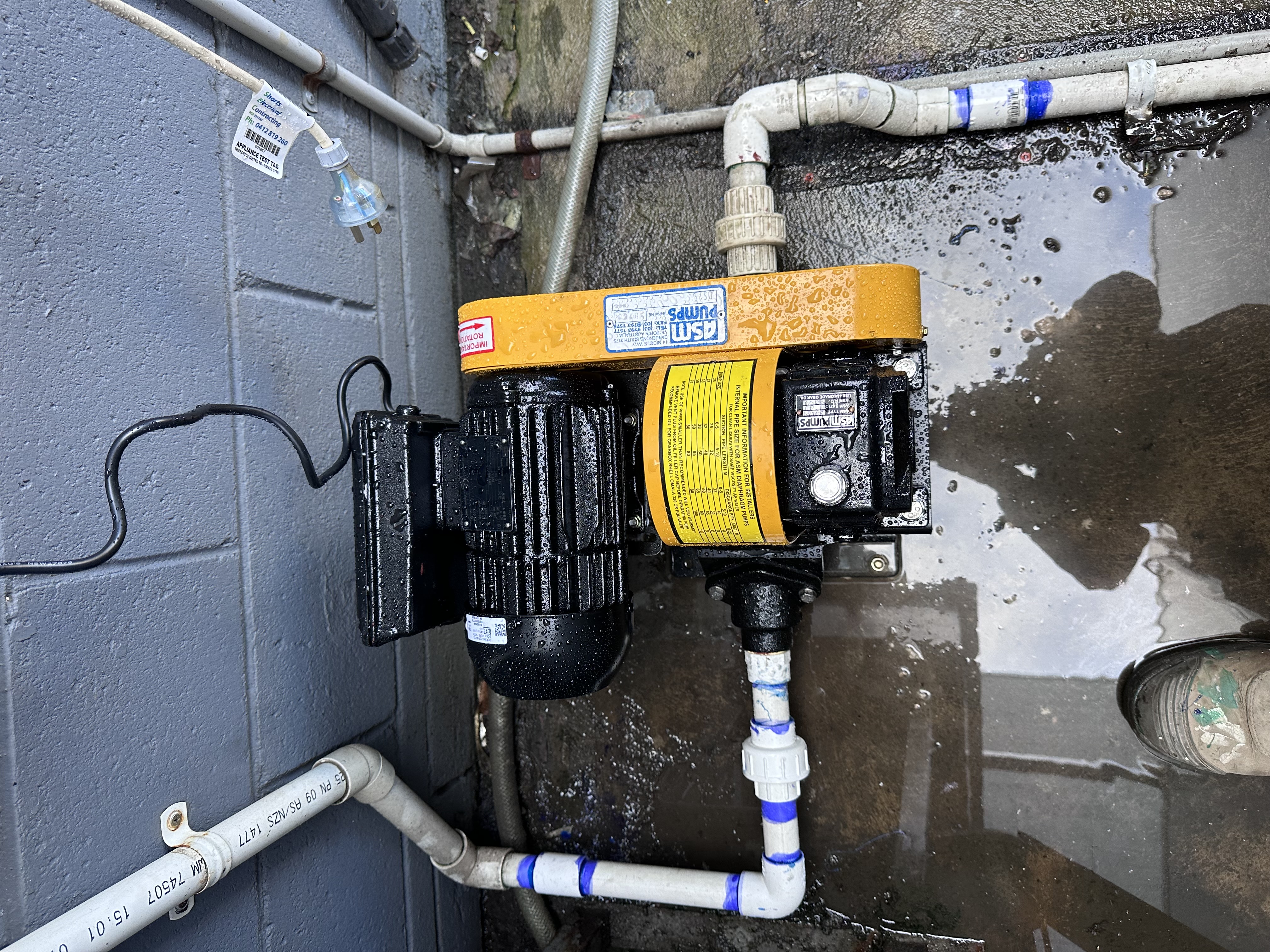

A pressure pump system consists of the pump unit, a pressure tank and a pressure controller. The pump activates when a tap is opened and pressure drops below the set point, and deactivates when all taps are closed and pressure is restored. Variable speed pressure pumps from Grundfos and Davey adjust their output in real time, reducing energy consumption and eliminating pressure surges.

Pressure pump installation in Adelaide requires compliance with SA Water regulations. A backflow prevention device must be installed to prevent pump-pressurised water from re-entering the mains supply. Mayfair Plumbing installs and certifies all required backflow prevention as part of every pressure pump installation.

→ Water pump and pressure pump repairs in Adelaide

Stormwater Pump Installation

Stormwater pump installation manages rainwater runoff on properties where gravity drainage to the street stormwater system is not feasible. Properties in low-lying areas of Prospect, Woodville, West Lakes, Torrensville and parts of the Adelaide Plains require stormwater pumps to prevent water pooling and property damage during heavy rain.

→ Stormwater pump services in Adelaide

Sewer Pump Installation

Sewer pump installation - also called a macerating or cutting pump station - is required for properties where the building's drainage level sits below the sewer main. The pump uses hardened blades to break down solid waste before pumping it through a pressurised discharge line to the sewer connection point.

In Adelaide, sewer pump installations are common in homes built on sloping blocks in the Adelaide Hills and in below-grade commercial kitchens and bathrooms across the CBD. All sewer pump installations must comply with SA Water trade waste requirements.

→ Cutting and grinding pump services in Adelaide

Commercial Pump Installation

Commercial pump installations include multi-pump manifold systems, chemical dosing pump stations, fire pump systems, and large-scale stormwater or sewer pump stations for commercial and industrial properties.

Mayfair Plumbing has installed commercial pump systems in hotels, hospitals, aged care facilities, office buildings and industrial sites across Adelaide. Commercial installations include project management, hydraulic design coordination, multi-pump controller programming, and detailed as-constructed documentation for ongoing maintenance.

→ Commercial pump services in Adelaide

Pump Brands We Install

We install pumps from 6 leading manufacturers, selected based on the application, budget and long-term parts availability.

→ Davey pump reviews · → Grundfos pump reviews · → Onga pump reviews

How Much does Pump Installation Cost in Adelaide?

Pump installation costs in Adelaide vary by pump type, capacity and site complexity. The following table provides typical price ranges including pump supply, pipework, electrical connection and commissioning.

Mayfair Plumbing provides a fixed-price written quote before commencing any installation. The quote includes all materials, labour, electrical work and commissioning - no hidden costs.

Frequently Asked Questions About Pump Installation

How Long does a Pump Installation Take?

A standard residential pump installation - sump pump, pressure pump or surface bore pump - is completed within 4–6 hours in a single visit. Submersible bore pump installations take 1 full day due to the complexity of lowering the pump, running the rising main and commissioning the system. Commercial installations with multiple pumps and controllers may take 2–5 days depending on the scope.

Do I need a Plumber or an Electrician to Install a Pump?

Pump installation requires both a licensed plumber and a licensed electrician. Mayfair Plumbing holds both plumbing and Class A electrical licences for pump work. One callout covers both disciplines, which is faster and more cost-effective than coordinating two separate tradespeople.

How do I Know What Size Pump I Need?

Pump size depends on 3 factors: the required flow rate (litres per minute), the total head pressure (vertical lift plus friction losses in the pipework), and the power supply available at the site. Our technicians calculate the correct pump size during the site assessment, ensuring the pump matches the demand without being undersized or oversized.

Can You Install a Pump on an Existing Bore?

Mayfair Plumbing installs replacement pumps on existing bores across Adelaide. We retrieve the old submersible pump, inspect the bore casing condition, and install a correctly sized replacement. If the bore casing is damaged or silted, we can advise on rehabilitation options before installing the new pump.

Do You Install Sump Pumps in Existing Basements?

We install sump pumps in both new construction and existing basements. For existing basements, we core-drill the sump pit into the concrete slab, install the pump and discharge line, and connect the electrical supply. The process is completed in a single day for most residential installations.

What Warranty do You Provide on Pump Installations?

All pump installations by Mayfair Plumbing include the manufacturer's product warranty (typically 2–3 years depending on brand and model) plus our workmanship guarantee on the installation itself. We provide a written commissioning report documenting the installation for warranty and maintenance records.

Is This Page About Heat Pump Hot Water Installation?

No. Heat pump hot water systems are a different category from bore, sump and pressure pump installations. For heat pump hot water, see our heat pump hot water systems page.
